Freight Facts and Figures 2011

Figure 3-8. Permitted Longer Combination Vehicles on the National Highway System: 2010

Longer combination vehicles (LCVs) include truck tractors pulling a long semi-trailer and a short trailer (often called a Rocky Mountain Double), a long semi-trailer and a long trailer (often called a Turnpike Double) or a short semi-trailer and two trailers (called a Triple). Although all states allow conventional combinations consisting of a 28-foot semitrailer and a 28-foot trailer, only 14 states and 6 state turnpike authorities allow LCVs on at least some parts of their road networks. Allowable routes for LCVs have been frozen since 1991.

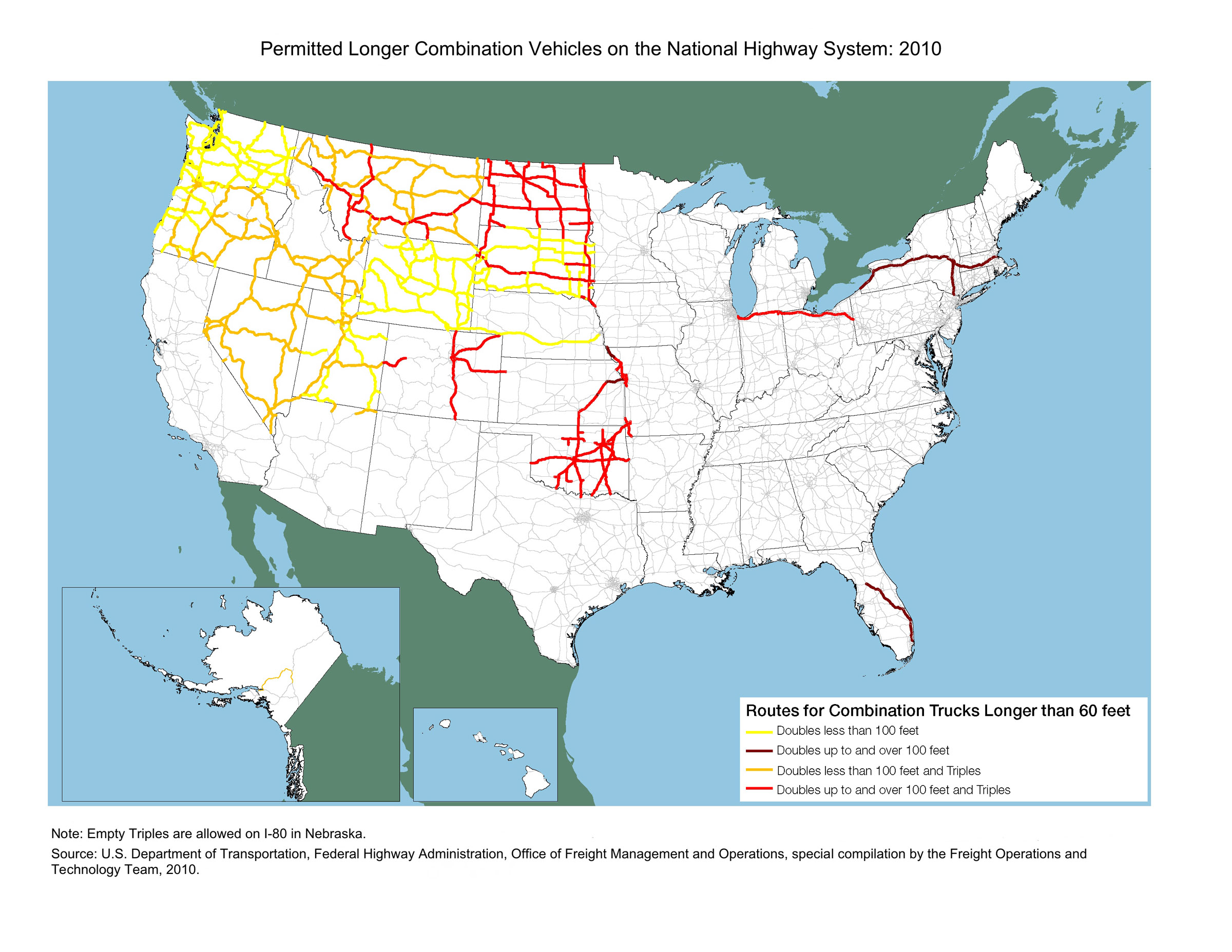

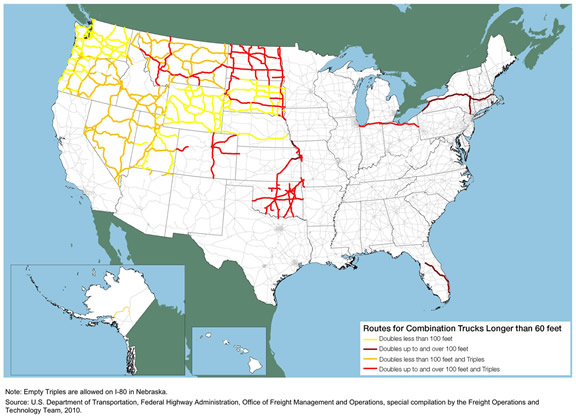

Figure 3-8. U.S. map showing routes for combination trucks longer than 60 feet. Note: Empty triples are allowed on I-80 in Nebraska.

[JPEG 631KB, PDF 1.6MB]


U.S. Department of Transportation, Federal Highway Administration, Office of Freight Management and Operations, special compilation by the Freight Operations and Technology Team, 2010.
