Freight Facts and Figures 2011

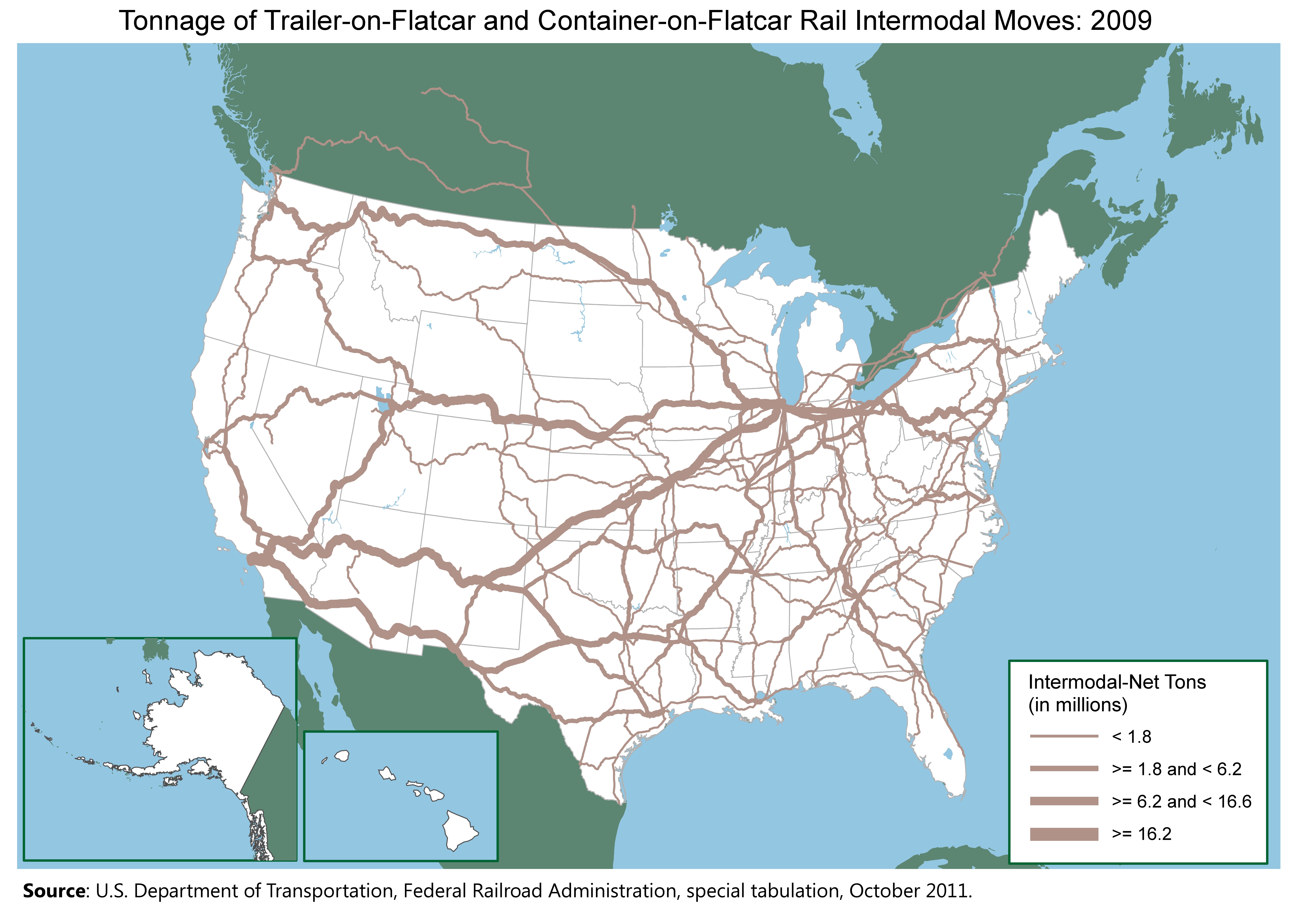

Figure 3-3. Tonnage of Trailer-on-Flatcar and Container-on-Flatcar Rail Intermodal Moves: 2009

Modes of transportation frequently work together to move high-vale, time-sensitive cargo. The classic forms of rail intermodal transportation are trailer-on-flatcar and container-on-flatcar, and these are spread throughout the United States. The largest concentrations are on routes between Pacific Coast ports and Chicago, southern California and Texas, and Chicago and New York.

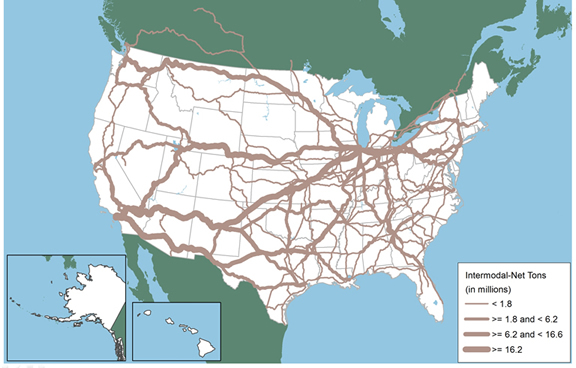

Figure 3-3. U.S. map showing amounts of intermodal tonnage transported in millions of net tons for year 2009.

[JPEG 408KB, PDF 629KB]


U.S. Department of Transportation, Federal Railroad Administration, November 2010.
